Application of re-plate
The latest processing guidelines (method statement) must be followed when applying re-plate. They provide detailed information on the individual application steps. On-site conditions and the quality of the concrete substrate must be checked as preparatory work.
Preparation
1 Fully remove any coatings, insulation, painting etc. from the area before strengthening
2 Clean re-plate accordingly to the method statement and temporarily fix the strip with T-struts
Bilateral (both ends) anchorage
3 Drill the substrate through the prepunched re-plate ends
4 End anchor mechanically using the Hilti bolt direct fastening system with tested stainless-steel bolts (X-CR 48 P8 S15)
Activation of prestressing

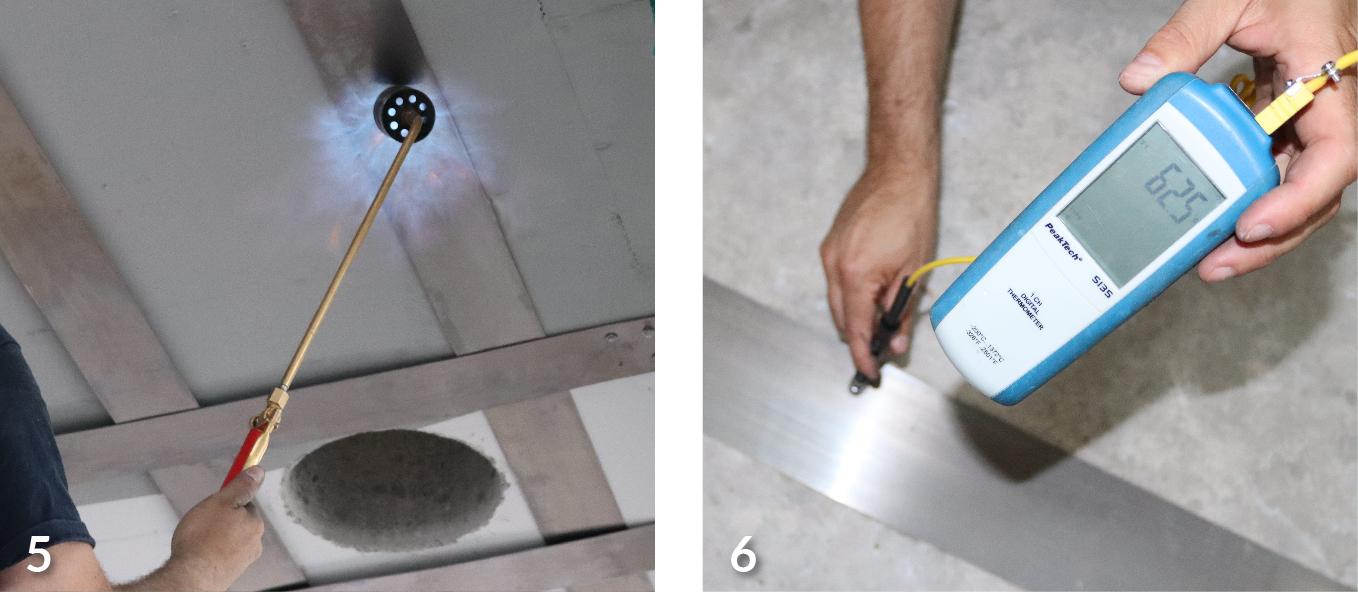

5 Segment-wise heating with gas burner
6 Temperature control by sensor and protocol
Corrosion protection
Corrosion protection of re-plate is essential against moisture and chlorides in the environment. The corrosion protection also serves as an intermediate layer for paint coats, gypsum, or other plastering mortars.

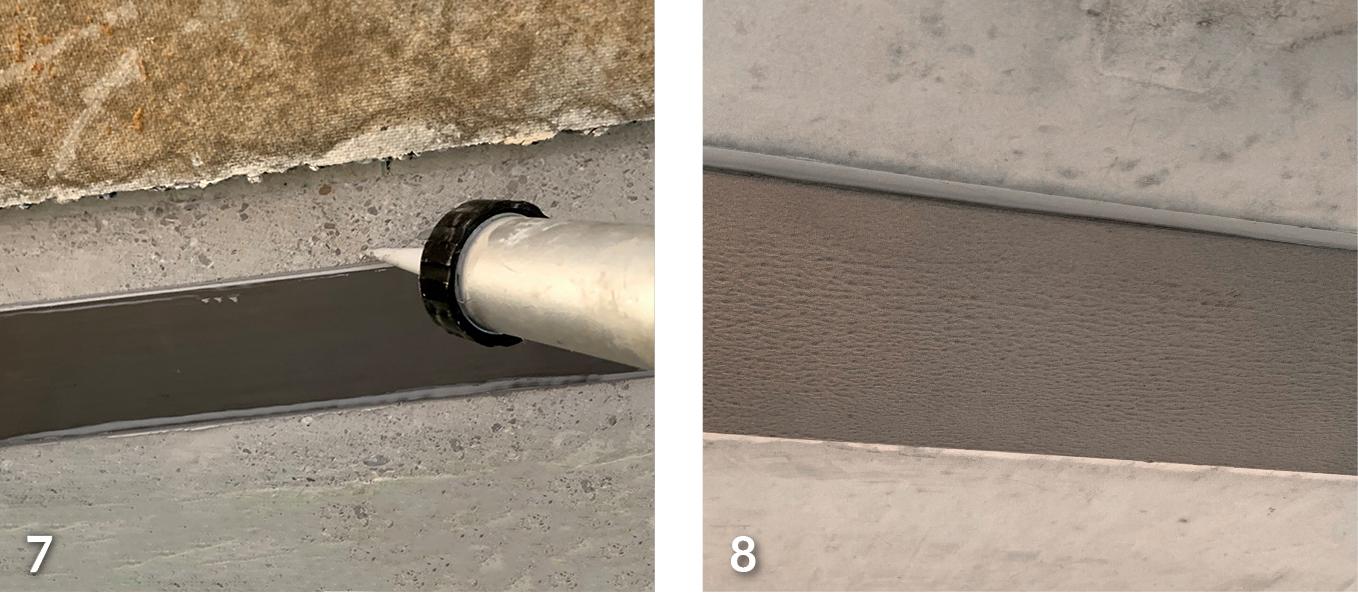

7 After cooling: re-plate is cleaned and dryed according to the method statement. re-plate is sealed on all sides with Sikaflex® PRO-3 Purform to prevent water ingress between concrete substrate and the strip.
8 Macropoxy® EG-1 Plus (former SikaCor® EG-1 Plus) corrosion coating is applied (two-layer, void filling)
Completion
9 Depending on the situation: Attach safety straps at intervals of approx. 1.5 m (as additional protection in the event of failure, e.g. mechanical damage)
8 Further works (plastering, painting, suspended ceiling, etc.)
On demand

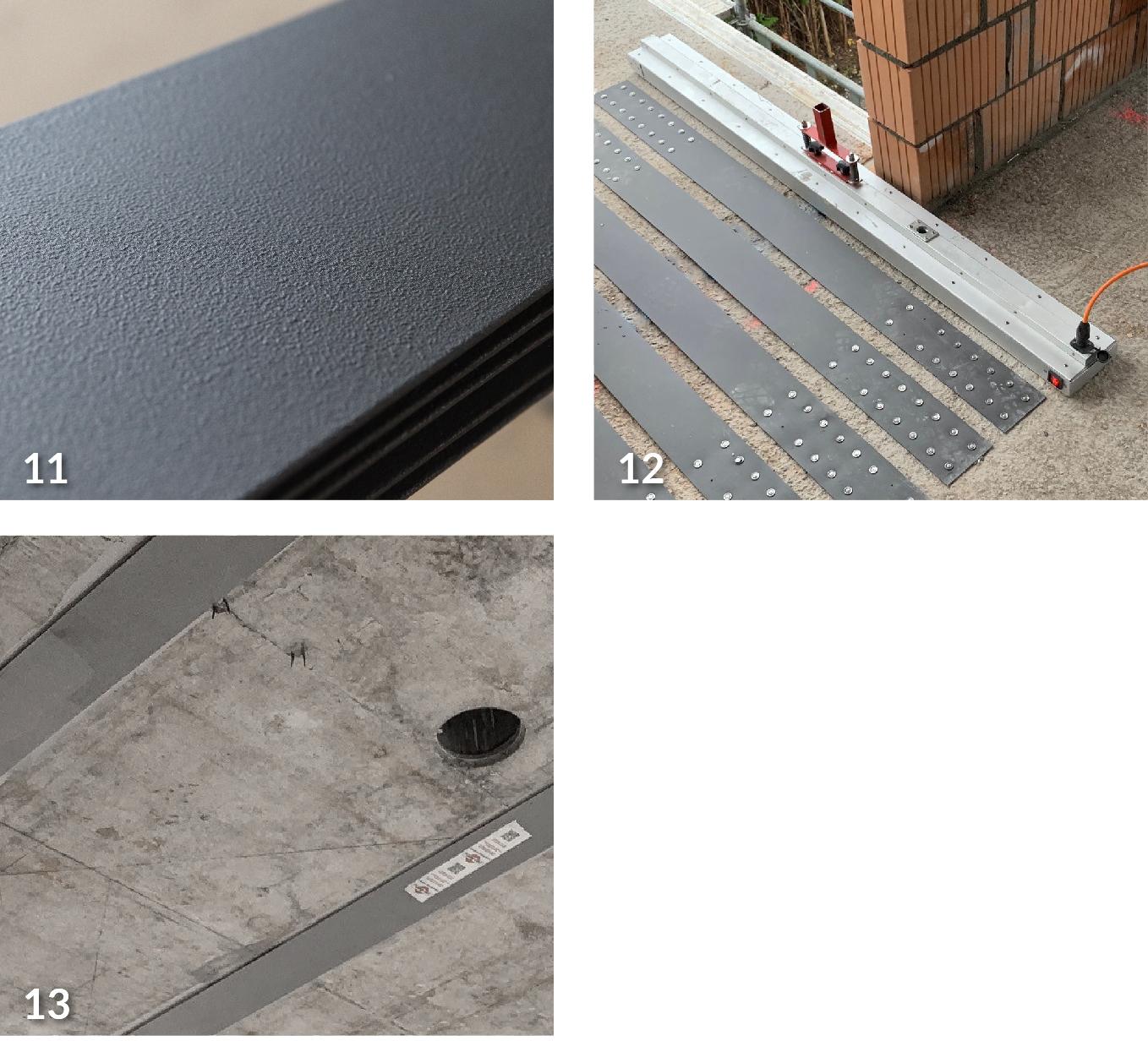

11 Corrosion protection intermediate coating Macropoxy® EG-1 Plus (formerly SikaCor® EG-1 Plus) is applied to both sides of the re-plate at the factory
12 Activate the prestressing with the re-IR 3000 infrared radiant heater, check and protocol the temperature
13 After cooling, also grout the sides of the re-plate (Sikaflex® PRO-3 Purform) and completely coat again with Macropoxy® EG-1 Plus (formerly SikaCor® EG-1 Plus), incl. anchoring direct fasteners
